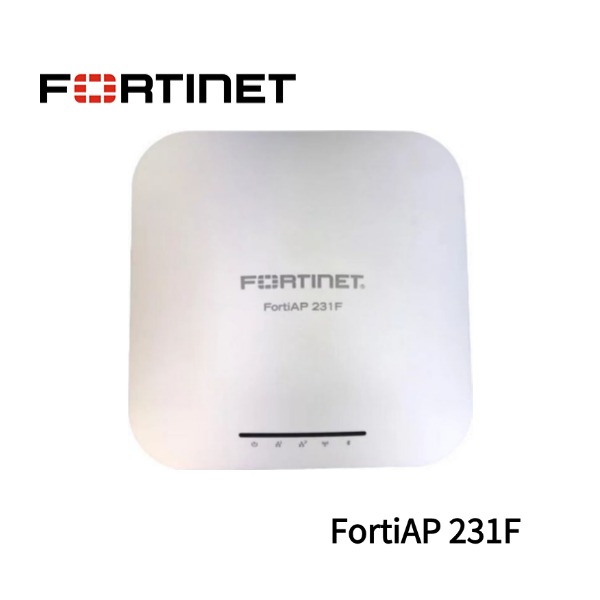

FortiAP 231F
Fortinet FAP-231F
$390.00
FortiGate, FortiEdge Cloud or SASE managed Access points
FortiAP™ access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiEdge Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
Secure Wireless LAN Use Cases
•SD-Branch:Deploying branches can be expensive and difficult. Using FortiAPs along with Fortinet Secure SD-WAN creates a Secure SD-Branch.
•Campus:Local-area networks in campuses can be complex. With FortiGate as a LAN controller, IT reduces risk by converging networking and security.
•Teleworker:Extend corporate network access securely to remote workers by deploying FortiAPs as remote APs.
•Thin Edge:Offer secure networking at a remote location by deploying FortiAP with a remote security manager.
Product: FortiAP 231F
SKU: FAP-231F
Description: Indoor Wireless AP - Tri radio (802.11 b/g/n/ax 2x2 MU-MIMO, 802.11 a/n/ac/ax 2x2 MU-MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 ), internal antennas, 2x 10/100/1000 RJ45 port, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order 802.3at PoE injector GPI-130 or AC adapter SP-FAP250-PA-10.
Hardware: Type Indoor AP
Number of Radios: 3 + 1 BLE
Number of Antennas: 3 Dual band Internal Wi-Fi + 1 BLE/ZigBee
Antenna Type and Peak Gain:
PIFA antenna
Dual band: 4.5dBi for 2.4Ghz and 5.5dBi for 5GHz
BLE antenna 4.0dBi at 2.4GHz band
Frequency Bands (GHz):2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Frequency band: 2.4GHz
Channel width: 20/40MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2x2 Service
Maximum Data Rate:up to 574 Mbps
Maximum Tx Power (Conducted:2.4GHz: 23 dBm / 200 mW (2 chains combined)
Frequency band: 5.0GHz
Channel width: 20/40/80MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2x2 Service
Maximum Data Rate:up to 1201 Mbps
Maximum Tx Power (Conducted):5GHz: 22 dBm / 158 mW (2 chains combined)
Frequency bands: 2.4GHz and 5.0GHz
MIMO Chains: 1x1 Frequency Scanning
Maximum Data Rate:Frequency scanning only
Maximum Tx Power (Conducted):NA
Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power
2x 10/100/1000 Base-T RJ45
1x Type 2.0 USB
1x RS232 RJ45 Serial Port
• 802.3at PoE default
• 1 port powered by 802.3at - full system functionality + USB support
• 1 port is connected to 802.3af - no USB support
Length x Width x Height:
6.0 x 6.0 x 2.86 inches (153.2 x 153.2 x 53.0 mm)
Weight:
1.0 lbs (0.543 kg)
Package (shipping) Weight :
2.1lbs (0.95 kg)
Power Supply: 802.3at PoE GPI-130
Power Consumption (Maximum): 17W
