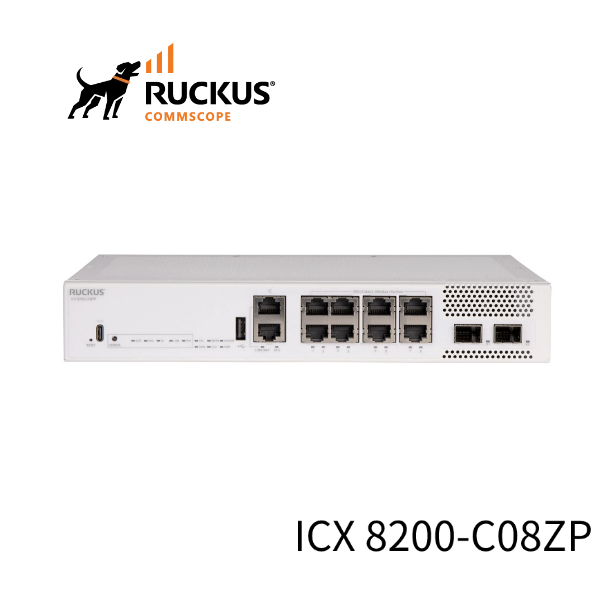

RUCKUS ICX 8200-C08ZP
Entry-Level+ Access Compact 8 Ports Multigigabit PoE Switch
$1.00
RUCKUS ICX 8200 Switches Features
The RUCKUS ICX 8200 Series Switches are designed for the demands of next-gen wireless-first and IoT campus environments. These intelligent edge devices deliver scalable, enterprise-class performance at a cost-effective price without compromising on speed or reliability.
Raising expectations, the ICX 8200 supports up to 8× 25 GbE uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 networking, and industry-best stacking density with as many as 12 units per stack. It blends enterprise-level manageability, resilience, and features with the adaptability and affordability of a stackable platform that grows alongside your network.
·Maximum flexibility and connectivity options
Gigabit, Multigigabit edge, and Fiber to the Room ports optimized for Wi-Fi 6/6E/7 access points. 1/2.5/5/10 Gbps Copper, 1G SFP, and 10G SFP+ fiber supported.
·Power next generation APs and PoE devices
30W PoE+ (802.3at) on all ports, 60/90W PoE++ (802.3bt) on multigigabit ports, and up to 1480W budget with dual PSUs.
·25 GbE uplinks/stacking deliver superior throughput and long-term investment protection.
Prevent bottlenecks with 8× 1/10/25 GbE SFP28 uplink/stacking ports.
·Advanced L3 routing for versatile architectures.
IPv4/IPv6, static, RIP, OSPF, VRRP, VRF, GRE, PIM, and PBR available.
·Enhanced availability
Redundant, load-sharing power supplies and hot-swappable fans (selected models).
·Services and Support Included
Every ICX 8200 comes with 3 years of TAC remote support and a limited lifetime warranty.
·Enhanced Security and Privacy
VXLAN* offers advanced segmentation and data protection.
RUCKUS ICX 8200 Compact Switch, 4×100/1000/2500 Mbps PoE++ ports, 4× 1/2.5/5/10Gbps PoE++ ports, 2×25 GbE SFP28 stacking/uplinkports, 240 W PoE budget, three-year remote TAC support. Power cord not included. Must use power cord with high temperature C15 connector.
Switching capacity (data rate, full duplex):200 Gbps
Forwarding capacity (data rate, full duplex):148 Mpps
Maximum VLANs:4,095
Maximum PVLANs:32
Power inlet (AC):C14
Input voltage/frequency:AC: 100 to 240 VAC @ 50 to 60 Hz
Power supply rated max (AC):305 W
PoE power budget (AC):240 W
Switch power usage (25°C):
10% traffic* (no PoE load):140 BTU/hr 100% traffic** (full PoE load):1023 BTU/hr
Dimensions:
Height x Width x Depth(cm):4.40 x27 x26
Height x Width x Depth(inches):1.73x10.63x10.24
Net Weight:3.23kg
